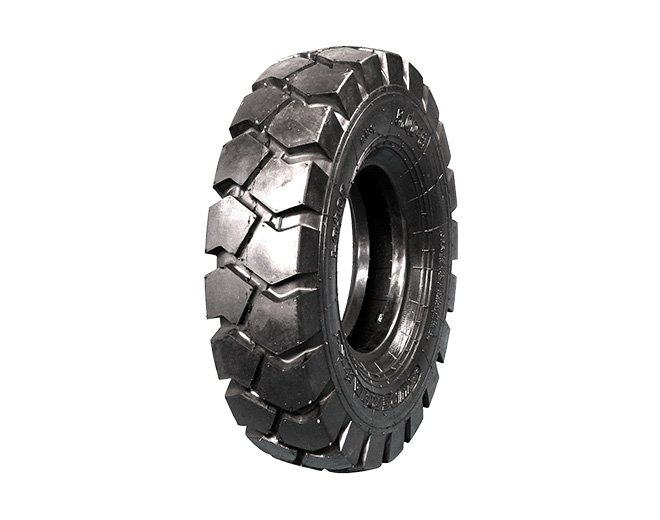

LQ301

Features:
Natural rubber compound limits heating-up.
Popular tread design, full ply construction and thick sidewalls.

Usage:
Mechanical Handling Equipment

Suitable Conditions:

Bias OTR Tyre

Share to:

Sizes AndSpecs

Tyre Size	PR	Tread pattern	Tread Depth (mm)	Rim Size	Tube	Flap	Tyre Dimensions		Inflation Pressure (kPa)	Load Capacity/Forklift(kg)
							Max in Service(mm)			25km/h		35km/h
							Outer Diameter	Section Width		Drive Wheel	Steer Wheel	Drive Wheel	Steer Wheel
5.00-8	8	LQ301	10	3.00D	5.00-8	5.00-8	476	143	825	1235	950	1190	885
5.00-8	10	LQ301	10	3.00D	5.00-8	5.00-8	476	143	1000	1415	1090	1365	1015
18*7-8 (180/70-8)	16	LQ301	10	4.33R	18*7-8	18*7-9	471	187	1000	2145	1650	2065	1535
18*7-8 (180/70-8)	18	LQ301	10	4.33R	18*7-8	18*7-9	471	187	1050	2405	1850	2315	1720
6.00-9	10	LQ301	12	4.00E	6.00-9	6.00-10	540	160	860	1505	1275	1400	1120
6.00-9	12	LQ301	12	4.00E	6.00-9	6.00-10	540	160	1030	1675	1415	1560	1245
7.00-9	10	LQ301	13.5	5.00S	7.00-9	7.00-9	590	190	860	1995	1685	1850	1480
21*8-9 (200/75-9)	14	LQ301	12	6.00E	21*8-9	21*8-10	546	216	900	2535	1950	2440	1815
21*8-9 (200/75-9)	16	LQ301	12	6.00E	21*8-9	21*8-10	546	216	1000	2755	2120	2650	1970
6.50-10	10	LQ301	13	5.00F	6.50-10	6.50-11	590	175	775	1950	1500	1875	1395
	12	LQ301	13	5.00F	6.50-10	6.50-11	590	175	900	2145	1650	2065	1535
	14	LQ301	13	5.00F	6.50-10	6.50-11	590	175	1000	2340	1800	2250	1675
7.00-12	12	LQ301	14	5.00S	7.00-12	7.00-13	675	190	860	2680	2060	2575	1915
7.00-12	14	LQ301	14	5.00S	7.00-12	7.00-13	685	207	900	2755	2120	2650	1970
8.25-12	12	LQ301	16	5.00S	8.25-12	8.25-12	735	216	720	3060	2585	2840	2270
7.00-15	14	LQ301	12	5.5	7.00/7.50/8.15-15	7.00/7.50/8.15-15	761	213	900	3350	2575	3220	2395
250-15 (250/75-15)	18	LQ301	12	7.5	250-15	8.15/250/300-15	750	270	950	4745	3650	4565	3395
250-15 (250/75-15)	20	LQ301	12	7.5	250-15	8.15/250/300-15	750	270	1050	5200	4000	5000	3720
28*9-15 (8.15-15) (225/70-15)	12	LQ301	10	7.0	700/750/815-15	8.15/250/300-15	706	220	830	2790	2355	2590	2070
	14	LQ301	10	7.0	700/750/815-15	8.15/250/300-15	706	220	970	3050	2575	2835	2265
	16	LQ301	10	7.0	700/750/815-15	8.15/250/300-15	706	220	1000	3115	2630	2895	2310
8.25-15	14	LQ301	14	6.5	8.25-15	7.00/7.50/8.25-15	853	253	800	4225	3250	4065	3025
8.25-15	16	LQ301	14	6.5	8.25-15	7.00/7.50/8.25-15	853	253	925	4615	3550	4440	3300
300-15 (315/70-15)	18	LQ301	14	8.0	300-15	8.15/250/300-15	857	324	800	6015	4625	5780	4300
300-15 (315/70-15)	20	LQ301	14	8.0	300-15	8.15/250/300-15	857	324	950	6340	4875	6095	4535
9.00-20	16	LQ301	14	7.0	8.25/9.00-20	8.25/9.00-20	1038	279	1000	5700	4750	5465	4420

Size	PR	T.D.	S.R.	O.D.	S.W.	Pressure	Max Loading (kg)						Code
		(mm)		(mm)	(mm)	(kpa)	15km/h		25km/h		35km/h
							Load	Rota	Load	Rota	Load	Rota
8.25-15	12	18	6.5	840	235	720	3330	2560	3000	2310	2680	2200	H989
8.25-15	14	18	6.5	840	235	800	4435	3410	4010	3085	3700	2845	NHS
28*9-15 （8.15-15）（225/70-15）	12	19	7	710	220	830	3020	2450	2790	2355	2590	2070
28*9-15 （8.15-15）（225/70-15）	14	19	7	710	220	970	3350	2810	3050	2575	2835	2265
8.25-12	12	18	6.5	765	235	750	3750	2885	3395	2610	3120	2400
7.00-12	12	13	5.00S	676	190	850	2830	2175	2555	1965	2355	1810
6.50-10	10	12	5.50F	590	175	775	1965	1510	1775	1365	1460	1260
7.00-9	10	13	5.00S	590	190	850	2365	1820	2145	1650	1975	1520
6.00-9	10	11	4.00F	540	160	850	1795	1380	1625	1250	1495	1150
5.00-8	10	11	3.00D	470	137	900	1295	995	1170	900	1080	830
16*6-8	10	13	4.33R	425	152	850	1295	995	1170	900	1080	830
18*7-8 （180/70-8）	14	15	4.33R	465	173	900	1840	1415	1665	1280	1335	1180
21*8-9 （200/75-9）	10	15	6.00E	535	200	625	1860	1430	1685	1295	1475	1190
23*9-10	12	16	6.50F	595	225	650	2485	1910	2250	1730	2065	1590

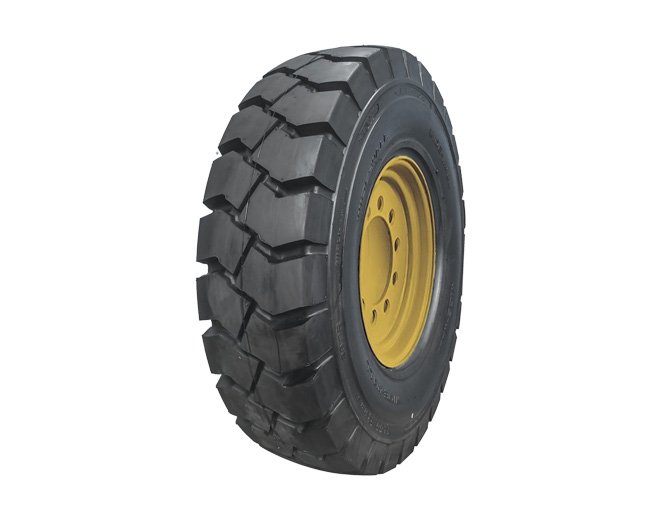

Size	S.R.	O.D.	S.W.	Max Loading (kg)						Other Industrial
		(mm)	(mm)	Counterbalance Lift Truck						Other Industrial
				10km/h		16km/h		25km/h		16km/h	CODE
				Load	Rota	Load	Rota	Load	Rota	Load
9.00-20	6.5	1038	238	6450	5160	6235	4675	5805	4355	4450
9.00-20	7	1038	238	6450	5160	6235	4675	5805	4355	4450
10.00-20	7.5	1073	240	7240	5795	6995	5240	6610	4885	4995	H991B
10.00-20	8	1073	240	7240	5795	6995	5240	6610	4885	4995	SOLID
11.00-20	7.5	1075	252	7240	5795	6995	5240	6610	4885	4995
11.00-20	8	1075	252	7560	6050	7300	5490	6810	5120	5210
12.00-20	8	1146	290	8800	7000	8500	6925	8000	6450	6595
12.00-20	8.5	1146	290	8800	7000	8500	6925	8000	6450	6595

Size	S.R.	O.D.	S.W.	Max Loading (kg)						Other Industrial	Code
		(mm)	(mm)	Counterbalance Lift Truck						Other Industrial
				10km/h		16km/h		25km/h		16km/h
				Load	Rota	Load	Rota	Load	Rota	Load
400-8	3.0/3.75	423	115	1055	845	1020	765	950	715	730	H992A
5.00-8	3	469	126	1210	970	1175	880	1095	820	840	H992B
18*7-8	4.33	457	154	2350	1880	2265	1700	2110	1585	1620	SOLID
（180/70-8）	4.33	457	154	2350	1880	2265	1700	2110	1585	1620
6.00-9	4	545	140	1920	1535	1855	1390	1730	1295	1325
6.50-10	5	597	157	2840	2110	2545	1910	2370	1780	1820
7.00-9	5	578	170	2370	2015	2805	1925	2370	1750	1785
7.00-12	5	683	168	3015	2410	2910	2185	2710	2035	2075
8.25-12	6.5	735	206	3326	2660	3215	2410	2995	2245	2295
8.15-15	7	706	207	4090	3270	3945	2960	3675	2755	2820
（28*9-15）
（225/75-15）
8.25-15	6.5	847	205	4940	3950	4765	3575	4440	3330	3045

Size	S.R.	O.D.	S.W.	Max Loading (kg)						Other Industrial	Code
		(mm)	(mm)	Counterbalance Lift Truck						Other Industrial
				10km/h		16km/h		25km/h		16km/h
				Load	Rota	Load	Rota	Load	Rota	Load
16*6-8	4.33	418	156	1500	1200	1445	1085	1345	1010	1035	H993
21*8-9 （200/75-9）	6	535	189	2810	2250	2715	2035	2530	1895	1940	SOLID
23*9-10	6.5	597	230	4005	3205	3845	2885	3605	2705	2765
