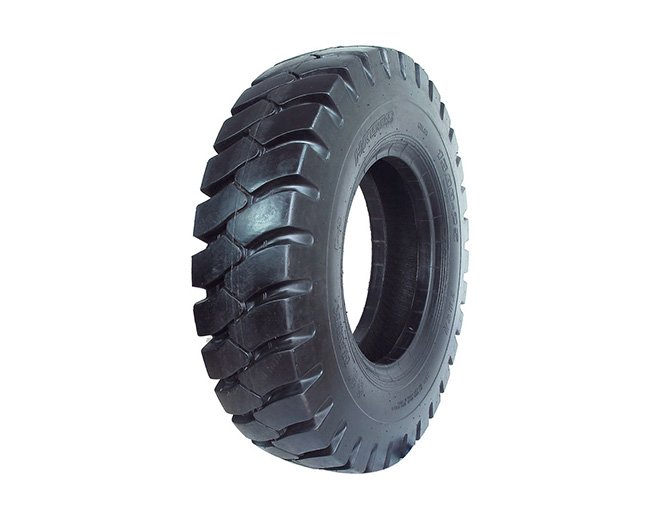

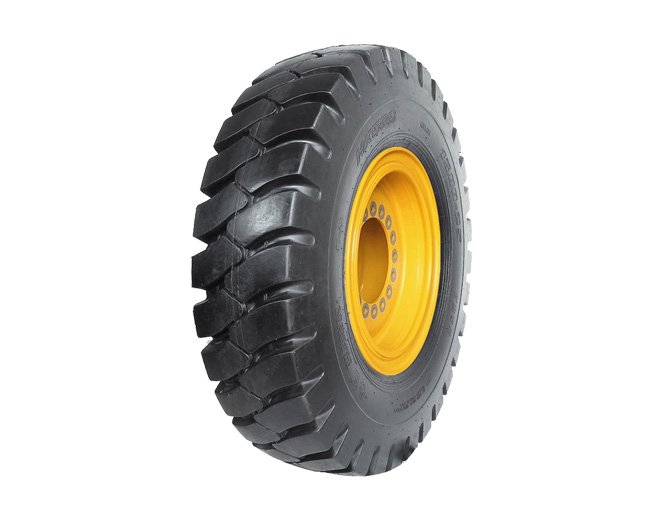

HK508

Features:
Apply to construction and mine area.
Extra wide tread profile and big block tread pattern design, supply execllent anti-puncture and tract performance.
Anti-aging formula to provide long wear life.

Usage:
Mechanical Handling Equipment/ Towing tractors / Mobile Crusher

Suitable Conditions:

Radial OTR Tyre

Share to:

Sizes AndSpecs

Tyre Size	PR	Tread Pattern		Rim Size	Tube Type	Inflated Dimensions (mm)			Max Load(KG) Versus Speed		Inflation Pressure(kPa)
		Type	TRA Code
						Outer Diameter		Section Width	16km/h	50km/h
14.00-24	24	HK508	E3	10	TT	1368		386	-	5150	575
13.00-25	28	HK508	E3	8.5	TT	1309		386	-	4600	700

Size	PR	T.D.	S.R.	S.W.	O.D.	Max Loading (kg)		Pressure (kpa)	Speed Index	Load Index	Code
Size	PR	(mm)	S.R.	(mm)	(mm)	Dual	Single	Pressure (kpa)	Speed Index	Load Index	Code
12.00-20	20	32	8.5	315	1125	3450	4000	810/800	G	151/156	K2009
11.00-20	18	30	8	293	1105	3150	3650	840/910		148/153
9.00-16	16	22	6.50H	255	902	1850	2120			129/134
8.25-16	16	22	6.50H	235	865	1600	1800	730		124/128
7.50-16	16	22	6.00G	215	815	1320	1500			118/122

Size	PR	T.D.	S.R.	S.W.	O.D.	Max Loading (kg)		Pressure (kpa)	Speed Index	Load Index	Code
Size	PR	(mm)	S.R.	(mm)	(mm)	Dual	Single	Pressure (kpa)	Speed Index	Load Index	Code
10.00-20	18	30	7.5	278	1073	2900	3350	840/910	G	145/150	K2018
7.50-16	16	22	6.00G	215	815	1320	1500	730		118/122
7.00-16	14	21	5.50F	200	785	1180	1320	730		114/118
6.50-16	12	18	5.50F	185	750	925	1060	630		105/110
6.00-15	12	17.5	4.50E	170	717	825	730	530		97/101
6.00-14	12	17	4 ½ J	170	691	710	800			96/100
6.00-13	10	15	4.50B	170	666	580	650	420		89/93

Size	PR	T.D.	S.R.	S.W.	O.D.	Max Loading (kg)		Pressure (kpa)		Code
		(mm)		(mm)	(mm)	Dual	Single	Dual	Single
11.00-20	18	22	8	293	1105	3150	3650	840	910	H2009
12.00-20	20	22	8.5	315	1145	3450	4000	810	880	E-4
10.00-20	18	30	7.5	278	1073	2900	3350	840	910	H2018
11.00-20	18	30	8	293	1105	3150	3650	840	910	IND-4
Size	PR	T.D.	S.R.	S.W.	O.D.	Loading (kg) @ 50km/h		Pressure (kpa) @ 50km/h		Code
		(mm)		(mm)	(mm)
13.00-25	22	26	8.5	350	1300	4250		550		H2011 E-3
	32					5010		740		H2018 IND-4
14.00-20	20	26	10	375	1265	4375		525		H2018
	28					5135		700		IND-4
14.00-24	28	30	10	375	1370	5600		650		H2012 E-3
	36					6640		740		H2018 IND-4
	40					6900		840
14.00-25	28	30	10	375	1370	5600		650		H2012 E-3
	36					6640		740		H2018 IND-4
	40					6900		840
